The SRM Origin Road Carbon PM9 is a double-sided power meter in the crank spider with carbon crank arms and chainrings and spindle of your choice. The SRM Spider power meter is now available in the 9th generation. The design is modular, ie power meter Spider, crank arms, axles and chainrings are interchangeable. This makes the SRM Origin suitable for almost any bike.
With the latest generation, the SRM power meter has ANT+ and also Bluetooth LE (Bluetooth Smart) and is thus compatible with many bike computers and smartphones.
Each SRM power meter is produced exclusively and custom made to order in the SRM factory in Jülich near Cologne - this results in a delivery time of about 2-3 weeks.
Highlights and Downsides
- dual-sided power measurement with high accuracy (± 1%)
- Gold standard of power measurement
- 1400h operating time with battery or 100h+ with rechargeable battery
- magnetless cadence measurement
- modular design - chainrings and crank arms can be combined freely
- excellent durability
- automatic temperature compensation
- left-right distribution
- works with many bike computers and smartphones (ANT+ & Bluetooth)
- 2-3 weeks delivery time - power meter is custom made to customer specifications
- hard to swap between different bikes
SRM power meter in the 9th generation
SRM (Schoberer Rad Messtechnik) was founded in 1986 by engineer Ulrich Schoberer. The power meter he developed and patented was the first of its kind and revolutionized training and competition in professional cycling. SRM's constant development and refinement of its patent has resulted in the 9th generation crank-based power meter. This keeps SRM at the cutting edge of technology and is still considered the gold standard of power measurement.
The 9th generation SRM power meter sits in the crank spider. It uses a combination of angle and torque measurement. As a result, it now has a higher accuracy at low cadence, also the use of oval chainrings (Q-rings) is no problem. The measurement of the left and right leg is not completely independent as with a pedal-based power meter. The force from the crank spider to the chainrings is measured. However, thanks to intelligent algorithms, the left-right distribution and the combined "pedal smoothness" can still be displayed. Especially with muscular imbalances, one is at an advantage with both-sided systems.

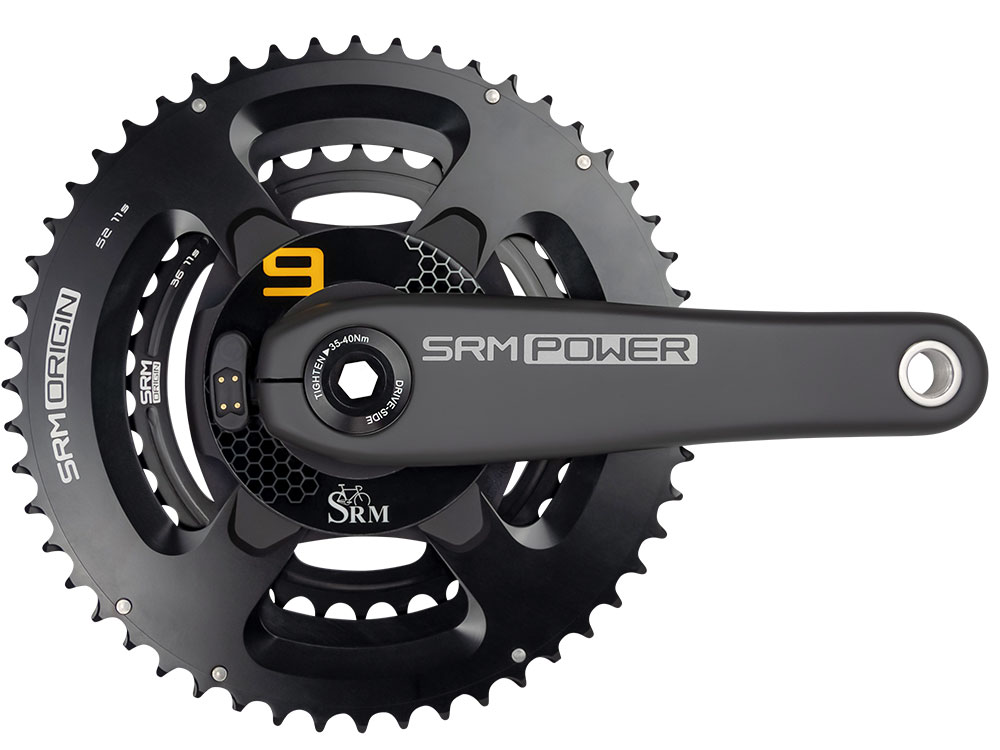

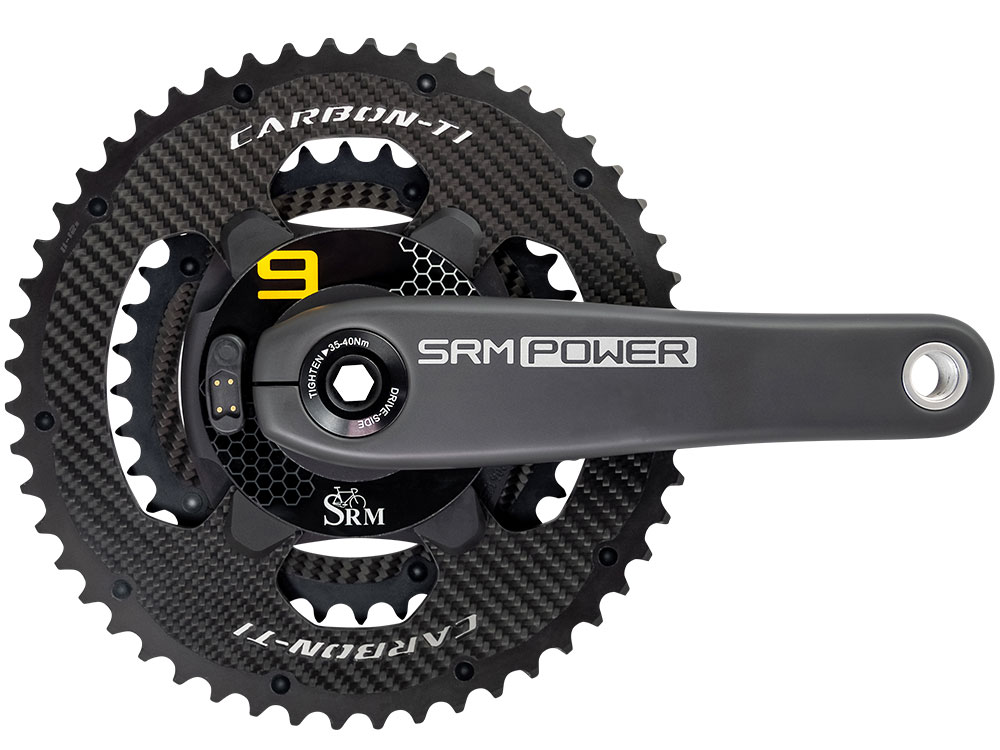

SRM Composite: SRM's own composite crank consists of a composite of carbon and Carbon. With 342 g, it is significantly lighter than full Carbon cranks with the same stiffness.

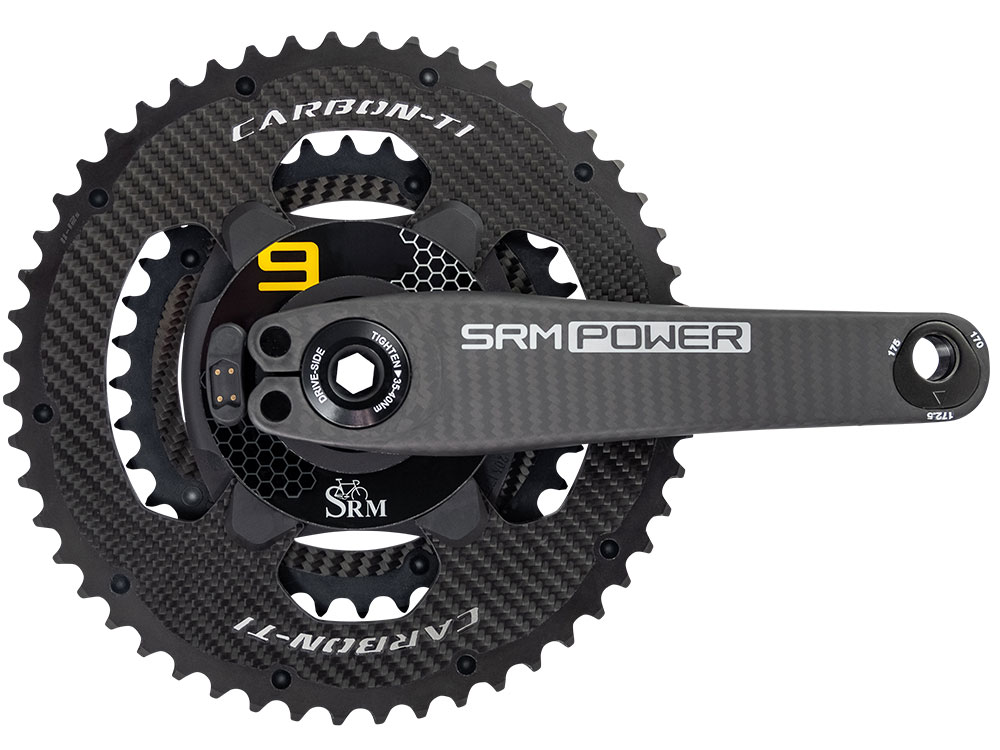

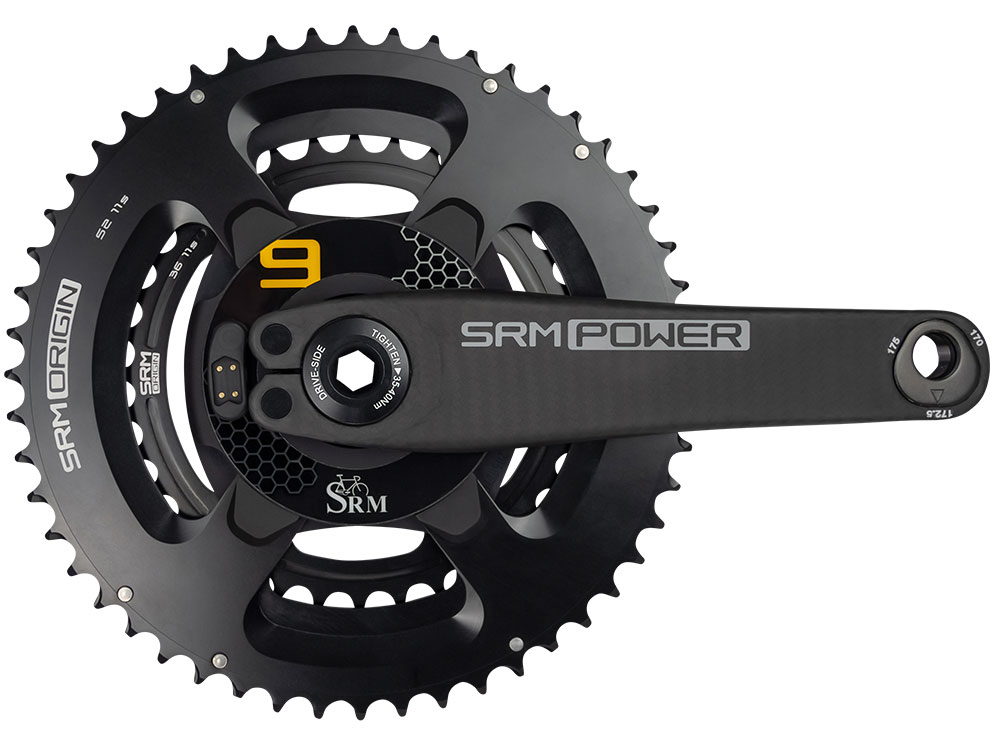

LOOK: Thanks to their Trilobe-technology, the LOOK carbon crank arms come with the option to vary between 170 mm, 172.5 mm and 175 mm crank length. Together, both cranks weigh about 252 g.

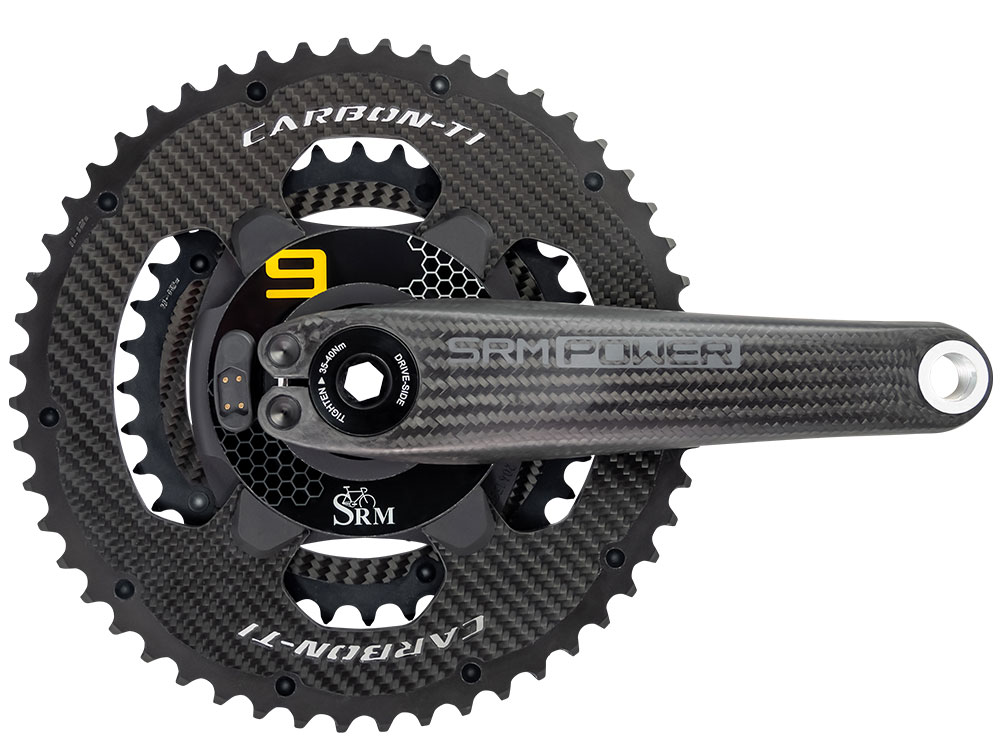

THM: The THM crank is the lightest crank in the Origin range. At 218 g for the left and right crank together, you offer maximum stiffness.
Spindle: The spindle is a separate component so that it can also be replaced. You can choose between 24mm, 30mm, and SRAM DUB.
Compatible bikes and groups
The SRM Origin PM9 can be used with the vast majority of frames and groupsets. The design is modular: power meter spider, crank and spindle are replaceable. The power meter spider has a 110 bolt circle and fits 4-hole chainrings.
It is available with two different spiders, one for original Shimano 9100 or 9200 chainrings and one for flat chainrings. The spider can be changed at any time, so that a later change of chainrings is also possible. Matching the frame, an axle with 24mm or 30mm diameter can be selected. Thus, the Origin can be mounted on just about any frame. The power meter can be equipped with 1-speed or 2-speed chainrings of choice. The SRM Origin Carbon power meter is offered in the crank lengths of 160 - 175mm.
Compatible bike computers and smartphones
ANT+ capable bike computers (Garmin, Wahoo, O-Synce, Sigma, SRM, etc.) work without problems with the SRM power meter. Since the data transmission also takes place via Bluetooth Smart, the power meter can also be paired with smartphones.
The power meter can be supplied optionally with or without chainrings. It can be equipped with 1-speed or 2-speed chainrings with 4-hole standard and 110mm bolt circle for all common groups.
Construction and design
The SRM PM9 sits in the crank spider and is well protected there against mechanical influences. SRM power meters are designed to function optimally even under the harshest conditions. Whether in the rain, snow or mud, SRM power meters defy even the most adverse weather conditions. The low-profile design does not allow dirt to penetrate, reduces the overall weight and makes the SRM power meter a long-lasting training partner. The high manufacturing quality (Made in Germany) and use of high-quality materials guarantee high reliability.
SRM has always been very involved in professional cycling. Thus, the PM9 was also used at the Tour and other high-profile bike races and put through its paces.
Battery or rechargeable battery
The SRM PM9 is optionally available with a battery or a rechargeable battery. The battery has an unbeatable operating time of 1400h and thus lasts for many years. After that, the power meter must be sent to SRM for battery replacement. The rechargeable battery allows an operating time of over 100h and can then be recharged through a magnetic plug.
The weight depends mainly on the combination with spindle, chainrings and crank arms. In combination with carbon cranks and chainrings breathtakingly light combinations from 599 g are possible.
We were able to confirm the measurement accuracy of +-1% with our calibrated Cyclus II ergometer in the laboratory and in comparison with other power meters on the road.
The cadence is determined in the power meter and transmitted to the bike computer or smartphone. An additional cadence sensor or cadence magnet is no longer necessary.
If temperatures change, different materials expand differently. This can have a significant impact on the measurement accuracy of a power meter, as the strain gauges react to even the smallest changes. The integrated temperature sensor of the SRM PM9 ensures the highest possible accuracy even under changing weather conditions.
Each individual SRM power meter is individually calibrated at the factory. Something else is the zero calibration (also called "Zero Offset" or "Manual Zero"), which should be done before every ride. This is similar to a scale that also "zeros" itself before weighing. Zero calibration can be done with the bike computer or smartphone.
Many power meters have problems with oval chain rings resulting in deviating measurements. Thanks to a combination of angle and torque measurement, the PM9 can now measure with higher accuracy even in situations with very low cadence and oval chainrings no longer affect the measurement.
Setup / Firmware Updates
Unlike other power meters, the SRM power meter does not need to be specially set up or registered. The correct crank length is already stored in the power meter. Firmware updates require the SRM App (Android & iOS) and a smartphone. We recommend to always use the latest firmware of the power meter and the cycling computer.
The SRM Origin Road Carbon PM9 simply replaces the existing crank. When ordering, please make sure to select the correct spindle diameter. In case of doubt, we stand by you with advice and support. Most likely, a readjustment of the front derailleur is also necessary. A true plug 'n play power meter, the SRM PM9 is not. If you want to change your power meter more often between different bikes, then we would advise you to another alternative.
We have had very good experience with the durability of the SRM PM9 power meter. Due to the well-protected location of the power meter, it is well protected against mechanical influences. In a crash, for example, a pedal power meter usually gets something off. Here, the SRM can score.
Warranty and support
The SRM PM9 power meter comes with 2 years warranty. The power meters and cranks are produced by SRM in Germany. The support is very good and customer-oriented. If there ever is a problem, we have a direct line to SRM and can help you quickly.

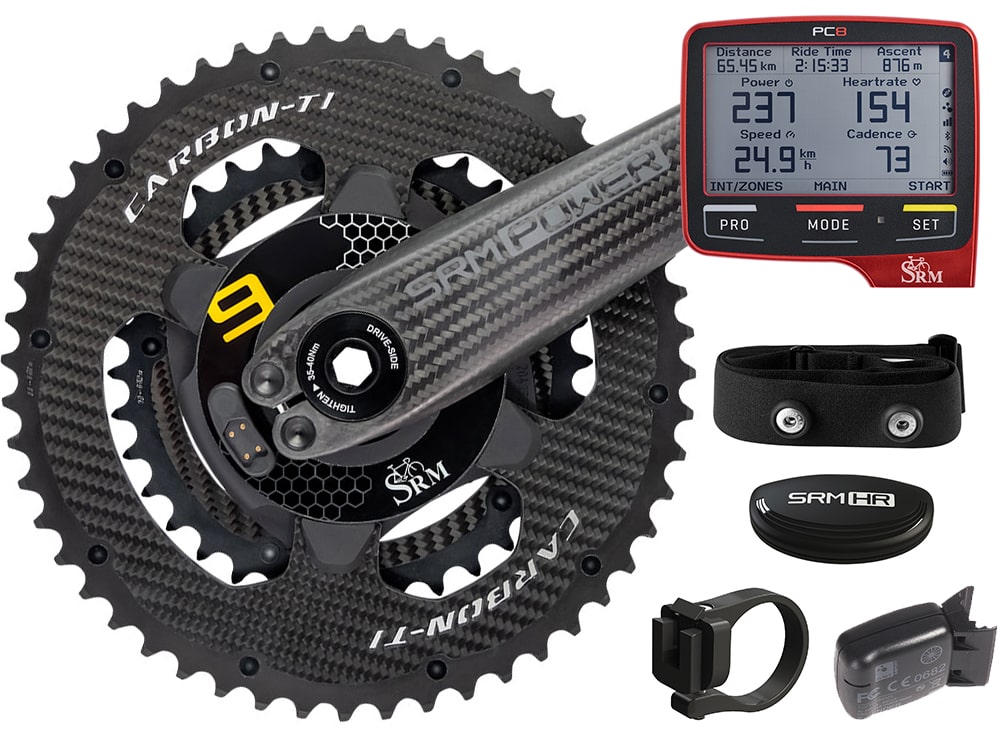

Optional: PC8 Bundle
The optional PC8 Bundle is the perfect complement for the SRM power meter. You get the SRM Powercontrol 8 bike computer with speed and HR-sensor for an attractive price.
The PC8 is a minimalistic bike computer. The functions are tailored to the needs of athletes. It therefore is very popular and frequently encountered in the pro peloton.
The PC8 has a GPS function that can be used to record training or competition. The GPS function can be turned off, as can the backlight - increasing battery life to up to 45 hours.
Thanks to the generous memory of 500MB, approximately 4000 hours of training and competition can be recorded in the user-friendly .fit format. The built-in motion sensor automatically activates the PC8 as soon as the ride is started.
Up to four different bike profiles can be created, eliminating the hassle of pairing with different power meters on different bikes. The display is freely configurable.
Included in the bundle are heart rate belt and speed sensor.
966g (with 172.5mm crank length, 53/39 chain rings and 24mm spindle)
145.5 - 153mm (depending on the spindle)
1400h battery; >100h rechargeable battery
ANT+, Bluetooth LE
Training Peaks, Strava, Garmin Training Center and others
160, 165, 167.5, 170, 172.5, 175mm
In the pack
✔ SRM Origin power meter
✔ crank arms
✔ optional: chain rings
✔ optional: PC8 bundle
